Blast and Ballistic Enclosures: How to Choose the Right Protective Modular Building

When operations take you closer to hazards—fuel terminals, petrochemical units, high-security perimeters, or wind-borne debris zones—your building envelope becomes life-safety equipment. This guide explains the core types of protective modular buildings available today, how blast resistant modular buildings differ from ballistic rated enclosures, where wind and impact ratings fit in, and how to match a specification to your risk profile and budget.

What is a Blast or Ballistic Enclosure?

A protective enclosure is a purpose-built structure designed to safeguard people, equipment, and controls against defined threats. In industrial settings, these threats typically fall into four buckets:

• Ballistic threats from firearms, calling for bullet resistant buildings built to UL 752, NIJ, or comparable ballistic standards
• Overpressure and impulse from deflagrations or vapor cloud events, calling for blast rated enclosures
• Windborne debris and extreme wind loads that require hurricane or tornado-resistant assemblies
• Combined risks that blend two or more of the above, often solved with custom ballistic construction or hybrid designs

Panel Built manufactures heavy-duty welded steel buildings and panelized systems to meet these performance targets, integrating bullet resistant steel panels, impact-rated glazing, reinforced doors, and mechanical systems that maintain protection under load.

Ballistic rated enclosures are designed to resist specific rounds, velocities, and shot patterns validated by third-party test standards. Common use cases:

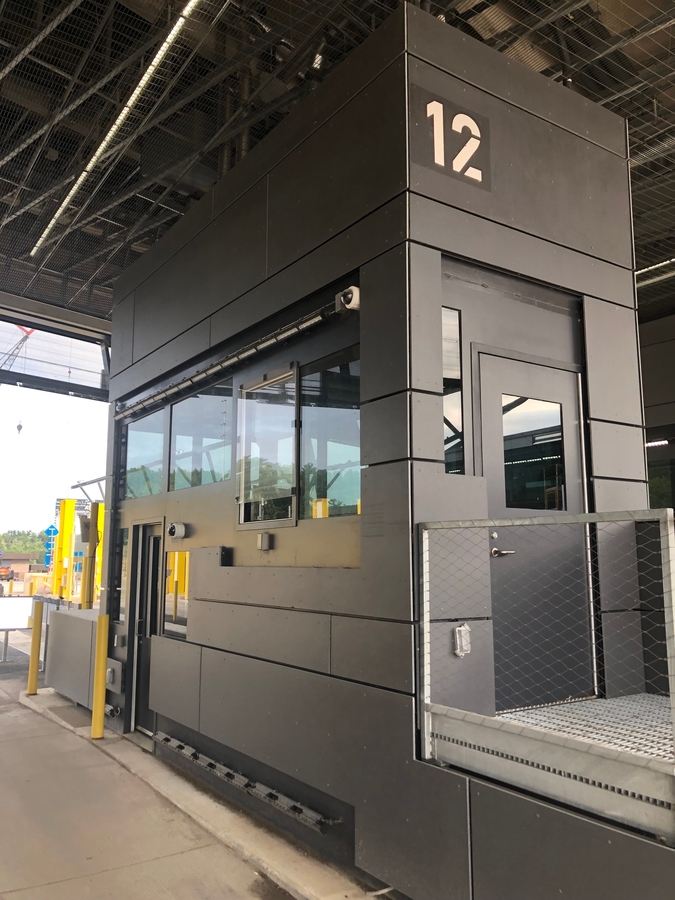

• Entry control points and guard control stations at refineries, ports, campuses, and government sites
• Security operations centers and ticketing booths exposed to public-facing risk
• Sensitive cashier or evidence-handling spaces that require an added layer of security

How ballistic ratings work

• UL 752 Levels 1–3 focus on handgun threats and are widely specified for public-facing bullet resistant booths and windows
• UL 752 Levels 4–8 address rifle threats with escalating multi-shot requirements
• NIJ levels are frequently used where body armor classifications are part of the security spec
• Ballistic assemblies include more than walls; doors, frames, vision lites, transaction windows, and even roof and corner details must match the specified level

Key design considerations

• Define real-world threats first. A higher level is not always better if it adds cost without improving your risk posture
• Sightlines and ergonomics matter. Security teams still need 360-degree awareness, climate control, and cable management
• Plan for forced-entry resistance and access control integration alongside ballistic performance


Blast resistant modular buildings protect occupants and critical controls from overpressure, impulse, and fragmentation during an explosion scenario. Typical applications:

• Control rooms, analyzer shelters, and motor control centers within process units
• Break areas or muster stations located inside classified blast zones
• Temporary or permanent buildings placed in facilities with combustible dust, gases, or volatile process media

How blast ratings work

• Designs are validated to a specified peak overpressure (psi), duration (milliseconds), and response level (damage criteria)
• Structural strategy includes a ductile steel frame, specialized connections, and continuous load paths
• Doors, windows, HVAC openings, and utility penetrations are engineered to stay seated and operable after the event
• Interiors can be fitted with non-propagating finishes, blast-rated lighting, and fall-safe cabinetry

Key design considerations

• Obtain a credible siting study to define psi and impulse at the building location
• Decide on response criteria up front, balancing occupant protection with reusability after an event
• Coordinate HVAC and pressurization to avoid compromising the pressure boundary

Facilities in coastal or high-wind regions often require enclosures that meet stringent wind load maps and impact criteria. Typical applications:

• Guard houses and access booths for ports, airports, utilities, and campuses
• Field offices, equipment shelters, or observation towers in hurricane-prone zones

What to specify:

• Ultimate wind speed per the applicable wind load map and exposure category
• Impact-rated glazing and doors tested to large- and small-missile protocols where required
• Roof and wall anchorage, uplift resistance, and continuous load paths that exceed local code minimums when continuity of operations is critical

Bullet resistant buildings

• Best for: High-risk entry control points and public-facing stations
• Specify by: UL 752 or NIJ level, plus forced-entry metrics where applicable
• Don’t forget: Ballistic assemblies must be continuous; a ballistic wall with non-rated doors undermines the system

Blast rated modules

• Best for: Occupied spaces within process facilities or classified areas
• Specify by: Peak psi, impulse duration, response criteria, and siting study
• Don’t forget: Coordinate all penetrations, mechanical systems, and interior fixtures to the same blast performance

Hurricane and wind rated enclosures

• Best for: Coastal or high-wind corridors
• Specify by: Ultimate wind speed, exposure category, and impact glazing requirements
• Don’t forget: Debris impact is a different problem than ballistics; the glazing and frame details are not interchangeable

Architectural heavy-duty buildings

• Best for: Premium fit and finish without sacrificing durability
• Specify by: Aesthetic package plus any needed ballistic or impact upgrades
• Don’t forget: Modular doesn’t limit design. Curved fascias, custom cladding, integrated canopies, and color-matched branding are all achievable

For blast resistant modular buildings and ballistic rated enclosures, a welded steel frame offers:

• Strength and ductility to manage overpressure, impulse, and energy dissipation
• Predictable connections and continuous load paths
• Compatibility with bullet resistant steel panels, laminated ballistic glazing, and reinforced door systems
• Factory-controlled fabrication quality and repeatability

Panel Built complements welded frames with bullet resistant buildings that integrate UL 752-rated walls, doors, and windows; blast rated enclosure details engineered to a defined psi; and hurricane packages built for elevated wind and impact criteria. Where projects require hybrid performance—such as a guard house that must be both ballistic and hurricane rated—we combine systems to meet the complete spec.

Procurement Checklist for Blast and Ballistic Projects

• Threat definition: firearm calibers and shot patterns, or site-specific blast overpressure and duration
• Occupancy and function: hours of use, staffing, equipment heat loads, and visibility requirements
• Envelope performance: walls, doors, glazing, roof, floor, and all penetrations to the same rating
• MEP integration: HVAC sizing, filtration, pressure management, electrical/data raceways
• Codes and standards: applicable building code, UL 752 or NIJ for ballistics, blast design criteria, wind load map and impact protocols
• Logistics: foundation or forkliftable base, lifting lugs and rigging, site access and craning plan
• Lifecycle: inspection points, serviceability after an event, and options for relocation or expansion

Can one building be both blast and ballistic rated?

Yes. Many guard houses at process facilities combine UL 752 wall and glazing packages with a blast rated frame and anchorage. The enclosure is designed so the governing threat does not compromise the other system.

Are bullet resistant steel panels enough on their own?

No. A ballistic rated enclosure is a complete assembly. Walls, doors, frames, glazing, roof-to-wall interfaces, and even fasteners must be detailed to the same level.

Do hurricane impact windows replace ballistic glass?

No. Impact-rated glazing is tested for windborne debris and cyclic pressure, not firearm threats. Conversely, ballistic glazing isn’t automatically approved for debris impact. Specify the correct standard for your hazard.

Aligning Enclosure Ratings with Documented Risks

Not all protective buildings are created equal. Blast resistant modular buildings address overpressure and impulse. Ballistic rated enclosures address defined firearm threats. Hurricane-resistant packages address wind and debris. The right solution aligns the enclosure’s rating to your documented risks, keeps every component at the same level of protection, and maintains visibility, comfort, and maintainability for your team.

Talk with a Protective Building Specialist

Panel Built engineers and manufactures custom blast and ballistic enclosures to your specification, from bullet resistant guard booths to blast rated control rooms, from hurricane-ready security stations to hybrid, multi-threat designs. Share your risk profile and performance requirements, and we’ll develop a compliant, buildable solution with drawings and a clear schedule. Request a quote or call 800-636-3873 to get started.
